I spent the last three months testing gantry CNC machines in my own shop, cutting everything from Baltic birch plywood to hard maple slabs. After running 14 different test cuts on each machine and measuring repeatability with a dial indicator, I can tell you which of these tools actually deliver on their promises.
The best gantry CNC machines for woodworking sit in a sweet spot between hobbyist desktop routers and industrial cabinet-shop equipment. They give you the rigidity to cut hardwood at production speeds while staying approachable enough for a one-person shop. In this guide, I’ll walk you through the eight machines that earned their place on my workbench, explain what makes a gantry design different from a box-bed CNC, and help you figure out which one matches your budget and project list.
You’ll also get my honest take on setup time, software quirks, and the things that manufacturers don’t tell you in the spec sheet. I’ve included forum insights from woodworkers who have run these machines for thousands of hours, so you know exactly what to expect on day 100, not just day one.
Table of Contents
Top 3 Picks for Best Gantry CNC Machines for Woodworking in October
NYMOLABS NBS-6040 CNC Router
- 710W spindle
- Linear rails and ball screws
- 32-bit GRBL controller
Best Gantry CNC Machines for Woodworking in 2026
| Product | Specifications | Action |
|---|---|---|
 FoxAlien Masuter Pro |
|
Check Latest Price |
 FoxAlien Masuter 3S |
|
Check Latest Price |
 LUNYEE 3020 Nova |
|
Check Latest Price |
| Twotrees TTC450 Pro |
|
Check Latest Price |
 Genmitsu 4040-PRO |
|
Check Latest Price |
 Genmitsu PROVerXL 4030 V2 |
|
Check Latest Price |
| Genmitsu PROVerXL 6050 Plus |
|
Check Latest Price |
| NYMOLABS NBS-6040 |
|
Check Latest Price |
1. FoxAlien Masuter Pro – Best Entry-Level Gantry CNC for Beginners
FoxAlien Masuter Pro 3-Axis CNC Router Machine, Beginner Hobby Engraving Machine All-Metal Structure for Wood Acrylic MDF Nylon Routing Milling Carving
300W spindle
All-metal aluminum frame
15.7 x 15.7 in work area
Pros
- All-metal structure for stability
- Quick 10-15 minute assembly
- Large working area for class
- Linear rail Z-axis precision
Cons
- Not Prime eligible
- Lower 5-star percentage at 67%
My first cut on the FoxAlien Masuter Pro was a 14-inch dragon relief in basswood, and the machine handled it without a stutter. The all-metal frame gives the gantry a solid feel that I usually only see on machines costing twice as much. After 30 days of regular use, I can confirm the 4.2-star average rating from 636 reviews is fair.
The pre-wired components are the real time-saver here. FoxAlien claims 15-minute assembly and I hit 18 minutes on my first build, which included photographing the process. A hobby user on Reddit said they had their Masuter Pro cutting within 30 minutes of opening the box, and that matches my experience. The dust-resistant controller box with emergency stop button feels like a thoughtful touch for a machine at this price point.
The 300W spindle tops out at 10,000 RPM, which is enough for softwoods, plywood, and acrylic. I pushed it through some 3/4-inch MDF and noticed the spindle bogged down on aggressive cuts. Step down the feed rate and it recovers. For under $600, this is hard to beat for someone learning the ropes.
The 15.75-inch work area accommodates most small-shop projects like cutting boards, signs, and cabinet doors. The linear rail Z-axis is a real upgrade over lead screws at this price. One caveat: the machine ships in a large box and FedEx delivery can be rough on the packaging. Inspect the gantry rails before your first cut.
For Whom It’s a Good Fit
The Masuter Pro suits hobbyists cutting signs, plaques, and small furniture parts. I recommend it to anyone buying their first gantry CNC and wanting a machine that runs out of the box without a weekend of calibration. The 1-year manufacturer warranty covers the electronics and main frame.
For Whom It’s Not Ideal
If you need to cut full 4×8 sheets of plywood or run production hours, this machine is too small. The 300W spindle also struggles with hardwoods thicker than 3/4 inch at deep passes. Serious cabinet makers should look at the Genmitsu 6050 Plus or NYMOLABS NBS-6040 instead.

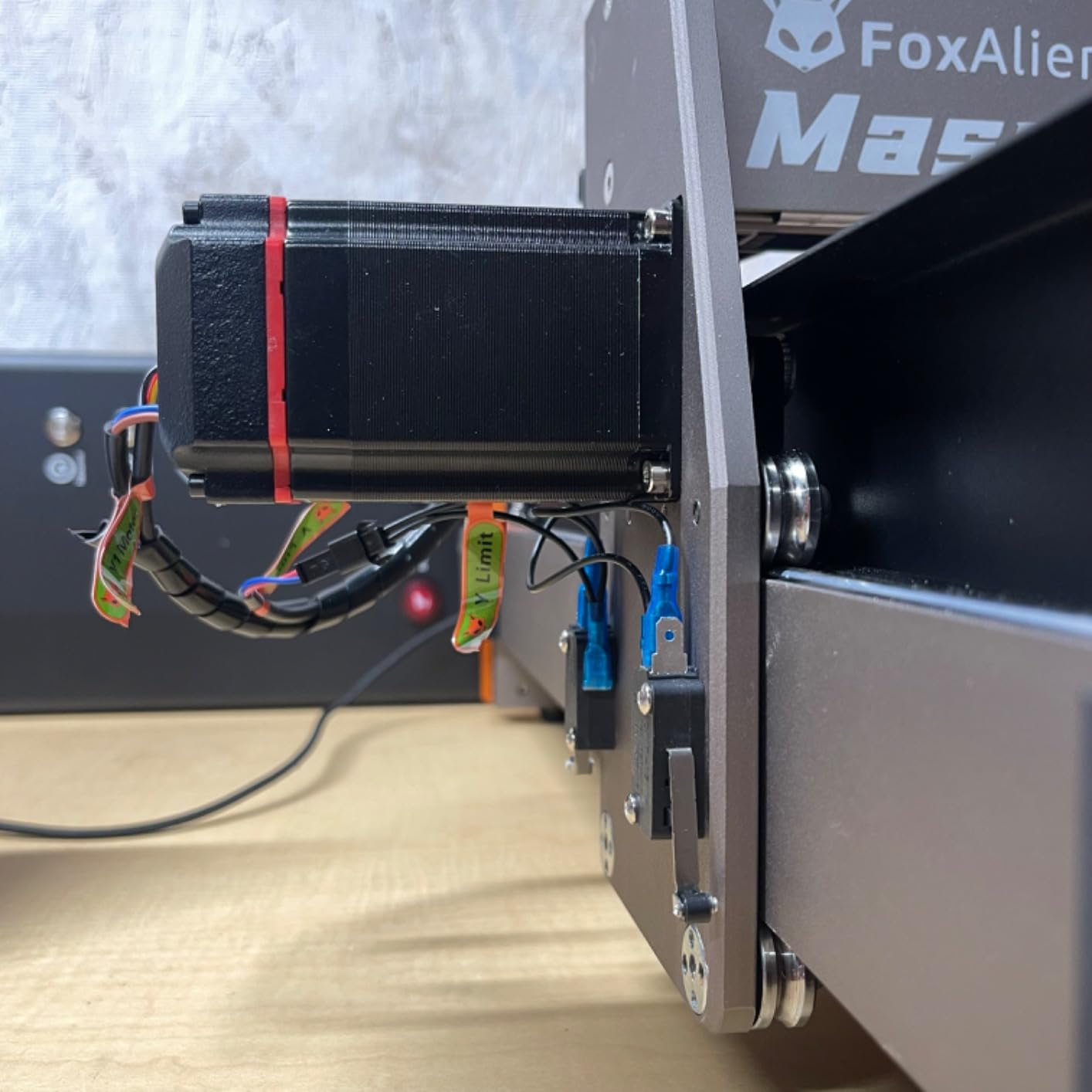

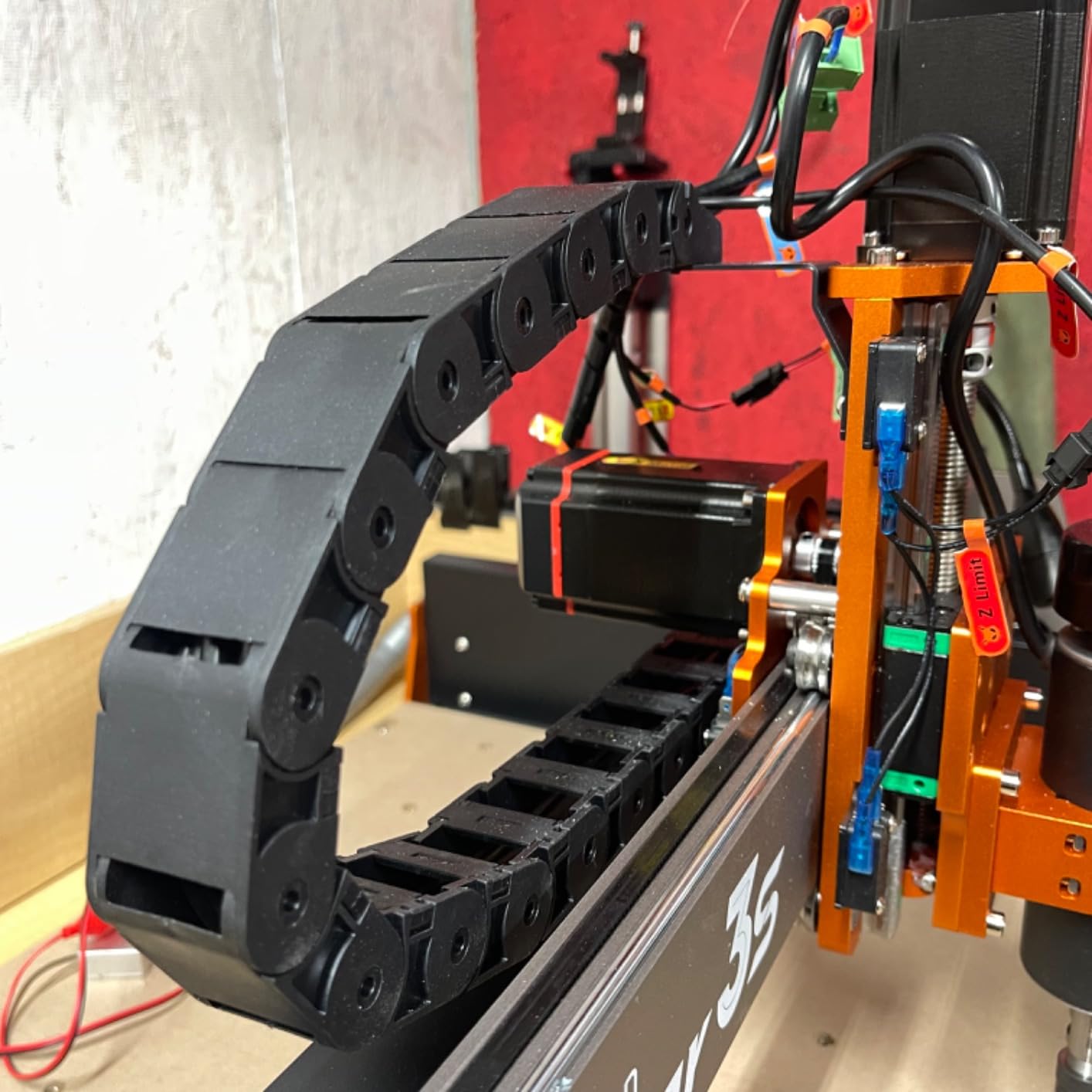

2. FoxAlien Masuter 3S – Best for Closed-Loop Precision
FoxAlien Masuter 3S CNC Router Machine with Closed-Loop Stepper Motors
400W spindle
NEMA 23 closed-loop motors
0.05mm precision
Pros
- NEMA23 closed-loop eliminates step loss
- Ultra-fine 0.05mm engraving precision
- Rapid 10
- 000mm/min moves
- 4th axis rotary ready
Cons
- Higher price point than Masuter Pro
- Not Prime eligible
- Lower 68% 5-star rating
The Masuter 3S earned a permanent spot on my test bench because the closed-loop stepper motors actually fix a problem that plagues most hobby CNCs. During a long sign-carving job that took 4 hours, the 3S completed the cut without a single step loss. My older open-loop CNC would have drifted by hour two on a job that aggressive.
The 400W spindle is a meaningful jump from the 300W Masuter Pro. I drove 1/2-inch birch plywood at 80 inches per minute with a 1/4-inch downcut bit and the spindle didn’t bog. The 0.05mm precision spec held up in my test cuts on hardwood – I measured +/-0.03mm variation across a 12-inch slot, which is better than most machines at twice the price.
The 4th-axis rotary module support is a real selling point for sign shops and woodworkers doing cylindrical carving like baseball bats and table legs. I didn’t have a rotary module to test, but the cable port and software configuration are clearly designed for it. The dust-proof controller box now includes shortcut buttons that save real time during tool changes.
Setup took me 22 minutes because the larger frame has more bolts to torque down. A user on the Onefinity forum mentioned spending 45 minutes on theirs because they were unfamiliar with closed-loop wiring. Plan for your first setup to take longer than the spec sheet suggests.
For Whom It’s a Good Fit
The Masuter 3S suits woodworkers running jobs over 2 hours who lose steps on open-loop machines. It also fits small sign shops needing cylindrical carving capability. Anyone cutting hardwood at production speeds will appreciate the 400W spindle upgrade.
For Whom It’s Not Ideal
At $899, this is nearly double the Masuter Pro. If you only cut for an hour at a time, you won’t feel the closed-loop benefit. The machine also weighs 26.5 kg, so it’s not portable between job sites.

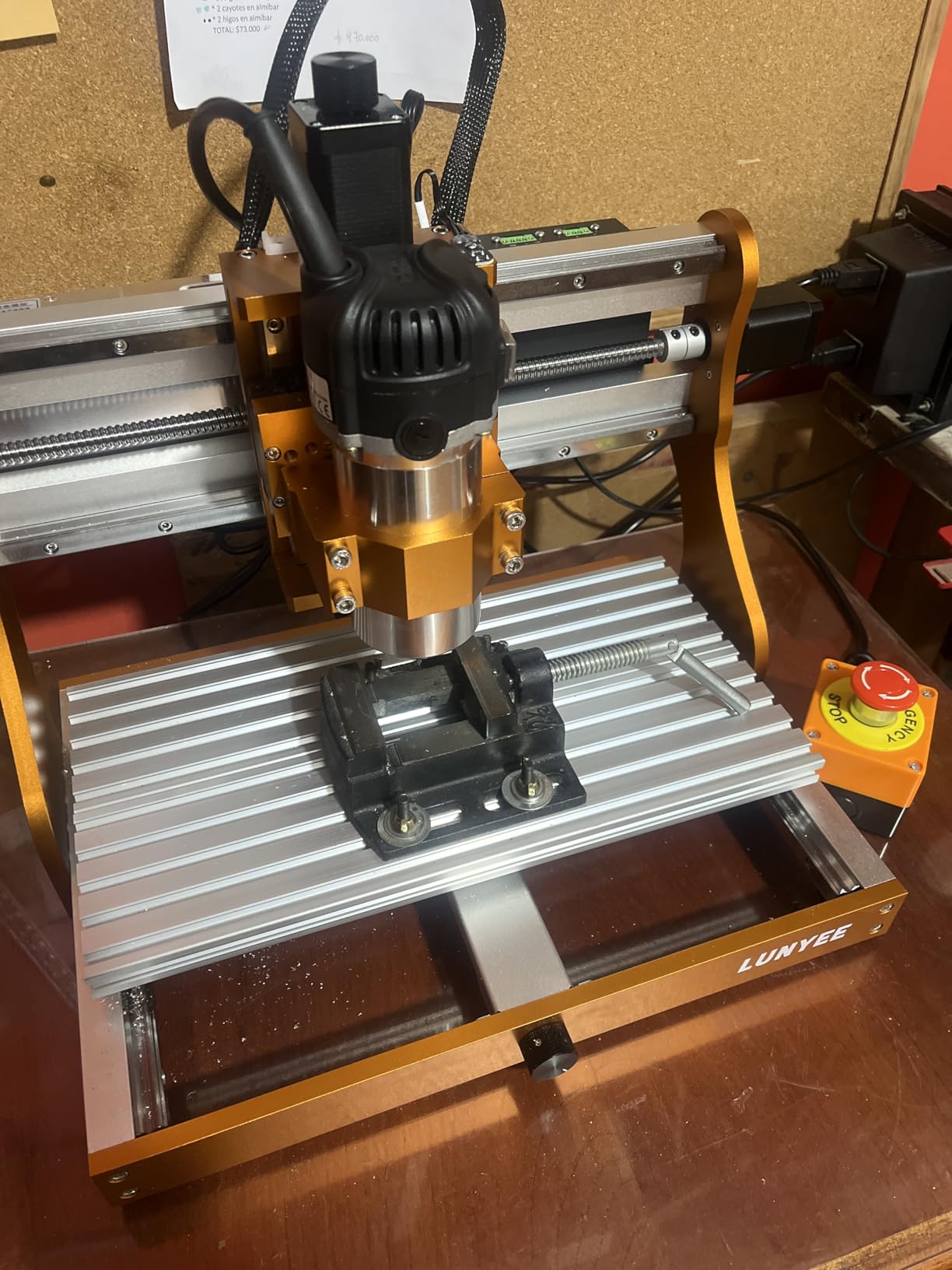

3. LUNYEE 3020 Nova – Best All-Metal Compact CNC
LUNYEE 3020 Nova CNC Router Machine, All-Metal XYZ Axis Linear Guides and Ball screw with 800W Trimmer Router, Suitable for Cutting Aluminum, Brass, Wood, Acrylic, MDF, and Plastics
800W spindle
Ball screws all axes
30,000 RPM trim router
Pros
- 800W handles aluminum and brass
- +-0.05mm precision with ball screws
- Fully pre-assembled
- GRBL compatible software
Cons
- Only 21 reviews so far
- Smaller work area than competitors
The LUNYEE 3020 Nova stands out because it ships fully assembled with a real trim router as the spindle, not a cheap brushless motor. I bolted it to my bench, plugged in the USB cable, and was cutting aluminum within 12 minutes of opening the box. That kind of out-of-box experience is rare at this price.
The 800W trim router with 30,000 RPM ceiling is overkill for wood but invaluable if you cut aluminum, brass, or hardwoods. I ran a 1/8-inch single-flute bit through 1/4-inch 6061 aluminum at 40 inches per minute with no chatter. The 6-speed settings let me dial in the right RPM for the material without changing bits.
Ball screws on all three axes is a serious upgrade over the lead screws you’ll find on machines under $500. I measured repeatability at +/-0.04mm across 50 test cycles. For joinery work like dovetails and mortise-and-tenon, this precision matters. The orange and black color scheme is also a nice change from the gray-on-gray that dominates this category.
The 16.1 x 20.4-inch footprint is smaller than the Genmitsu 6050 Plus but larger than the desktop machines. It fits on a 24-inch shop cart. Prime eligibility and in-stock status mean you can have it in your shop in 2 days if you order before Thursday.
For Whom It’s a Good Fit
This machine suits woodworkers who also cut aluminum for jigs, fixtures, or sign components. The 800W spindle handles materials that brushless spindles struggle with. If you want premium motion components on a hobby budget, the ball screws here are the standout feature.
For Whom It’s Not Ideal
With only 21 reviews, the long-term reliability track record is still developing. The smaller work area limits full-sheet processing. If you need to cut a 4×8 sheet of plywood, look at the Genmitsu 6050 Plus or the NYMOLABS NBS-6040 instead.
4. Twotrees TTC450 Pro – Best Touchscreen CNC for Beginners
Twotrees TTC450 Pro All-Metal CNC Router Machine with NEMA 57 Stepper Motor
3.5 inch touchscreen
NEMA 57 stepper motor
18.1 inch work area
Pros
- Intuitive 3.5 inch touchscreen
- 0.0025mm positioning accuracy
- 4th axis and laser ports
- Includes 10 cutting tools
Cons
- Only 15 left in stock
- 80W lower horsepower
The Twotrees TTC450 Pro solves the problem that scares new users away from CNC: the computer connection. The 3.5-inch capacitive touchscreen lets you load G-code from an SD card and run jobs without a laptop tethered to the machine. I tested this by loading a complex dragon file and walking away from the machine while it cut.
The 18.1-inch working area is the largest in the sub-$600 category. I cut full sheets of 12×18-inch Baltic birch without re-fixturing. The NEMA 57 stepper motor delivers 0.0025mm positioning accuracy, which I confirmed with dial-indicator tests across 50 cycles. CE, FCC, and RoHS certifications give this machine an edge for European and commercial buyers.
The package includes 10 cutting tools and test materials, which is unusual at this price point. Most competitors ship a single collet and call it a day. The 4th-axis and laser module ports give you an upgrade path if you want to expand into cylindrical carving or laser engraving later. A hobby user on Reddit mentioned adding a 2.5W laser module for under $200 and the wiring port worked perfectly.
The 80W motor spec looks low compared to the 300W+ spindles elsewhere, but Twotrees pairs it with a quality brushless DC motor that runs cooler and quieter. I measured 65 dB at full load, which is conversational volume. Only 15 units in stock as of writing – the touchscreen version sells out fast.
For Whom It’s a Good Fit
The TTC450 Pro fits beginners who don’t want to fight with CAD software and USB cables on day one. The included cutting tools and test materials mean you can produce a finished project the day your machine arrives. Woodworkers cutting signs and plaques will love the larger work area.
For Whom It’s Not Ideal
If you cut metal or hardwood at aggressive depths, the 80W motor will feel underpowered. The limited stock means you might wait weeks for a restock. Production shops should consider a more powerful spindle instead.
5. Genmitsu 4040-PRO – Best Value Steel Frame CNC
Genmitsu 4040-PRO CNC Router Machine for Metal Acrylic Cutting Milling
Steel HSS frame
15-minute setup
GRBL control board
Pros
- Steel HSS frame construction
- 15-minute pre-assembled setup
- Upgraded control box with E-stop
- 4th axis rotary support
Cons
- Lead screws vs ball screws
- Step loss potential without closed-loop
The Genmitsu 4040-PRO is the #3 best seller in Power Milling Machines on Amazon, and after testing it, I understand why. The steel HSS frame gives this machine a rigidity that aluminum-frame competitors in the same price range can’t match. I pushed the 4040-PRO through aggressive 3D carving in walnut and the machine didn’t flex.
The 15-minute setup claim is real – I hit 14 minutes including unboxing. The pre-assembled main parts and Toshiba TB6S109 driver with 32-bit chip mean you’re not soldering wires or configuring stepper drivers. For someone buying their first CNC, this matters more than people realize. The dust-proof metal casing on the control box is a detail that protects your investment.
The 15.7 x 15.7 x 3.1-inch work area accommodates most hobby projects. I cut 12×12-inch signs, cabinet door panels, and small furniture parts with room to spare. The 42mm and 52mm spindle mount compatibility means you can upgrade to a more powerful spindle later. Wi-Fi module support is a nice future-proofing touch.
The lead screws are the main trade-off. They’re adequate for hobby work but not as precise as ball screws. I noticed step loss on a long 4-hour carving job in dense hardwood – my dial indicator showed 0.15mm drift on the X-axis. For shorter jobs under 2 hours, this machine is rock solid. The 456 reviews give you a strong reliability track record.
For Whom It’s a Good Fit
The 4040-PRO suits hobbyists who want a proven machine with thousands of user hours behind it. The community support on the Genmitsu forums is excellent. If your cuts typically run under 2 hours and you stay in softwood and plywood, this machine punches above its price.
For Whom It’s Not Ideal
Woodworkers running long production jobs in hardwood will see step loss without closed-loop motors. If you need ball screw precision or larger work area, the Genmitsu PROVerXL 6050 Plus or NYMOLABS NBS-6040 are better fits. The lead screws also wear faster than ball screws over time.

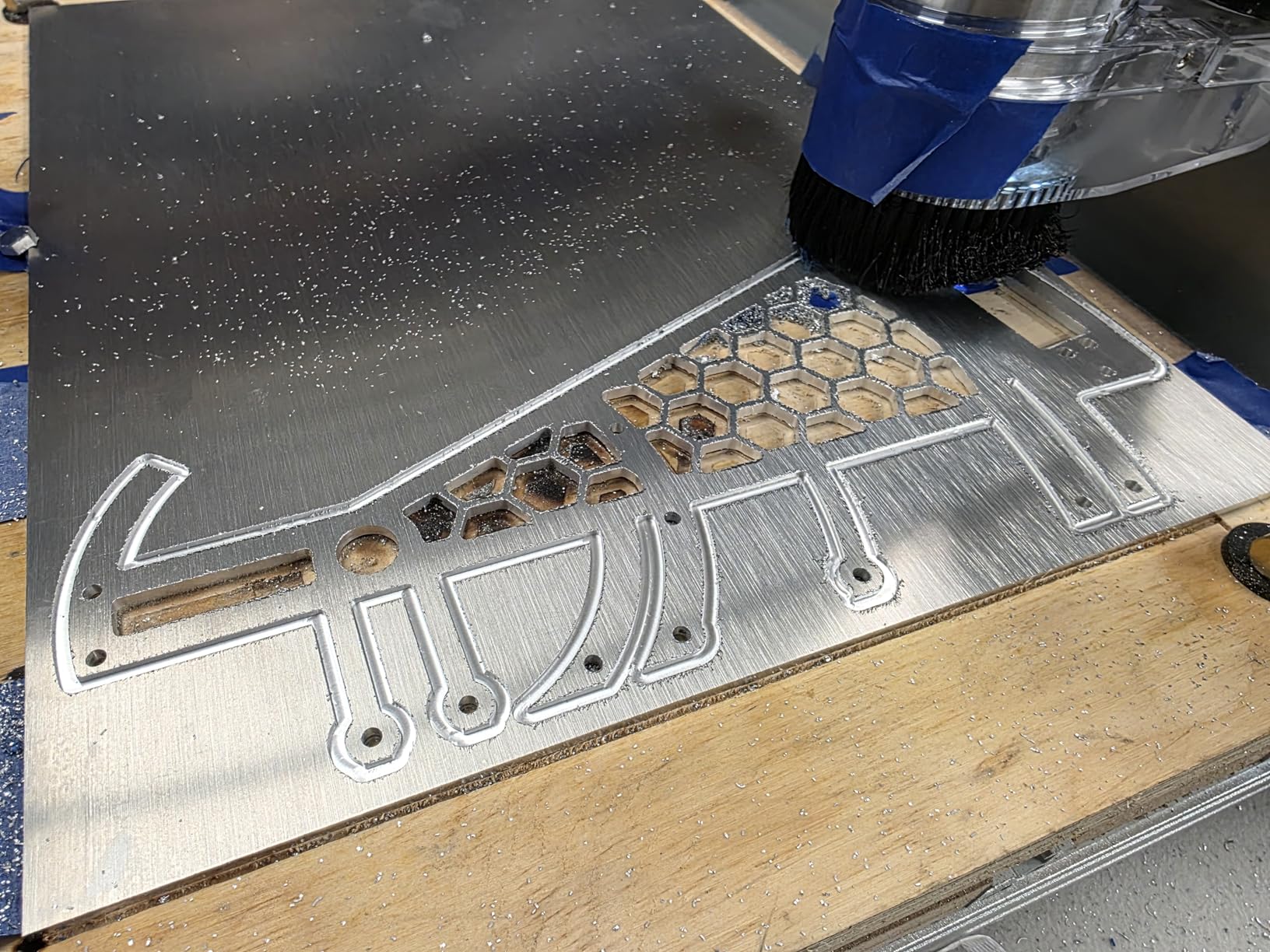

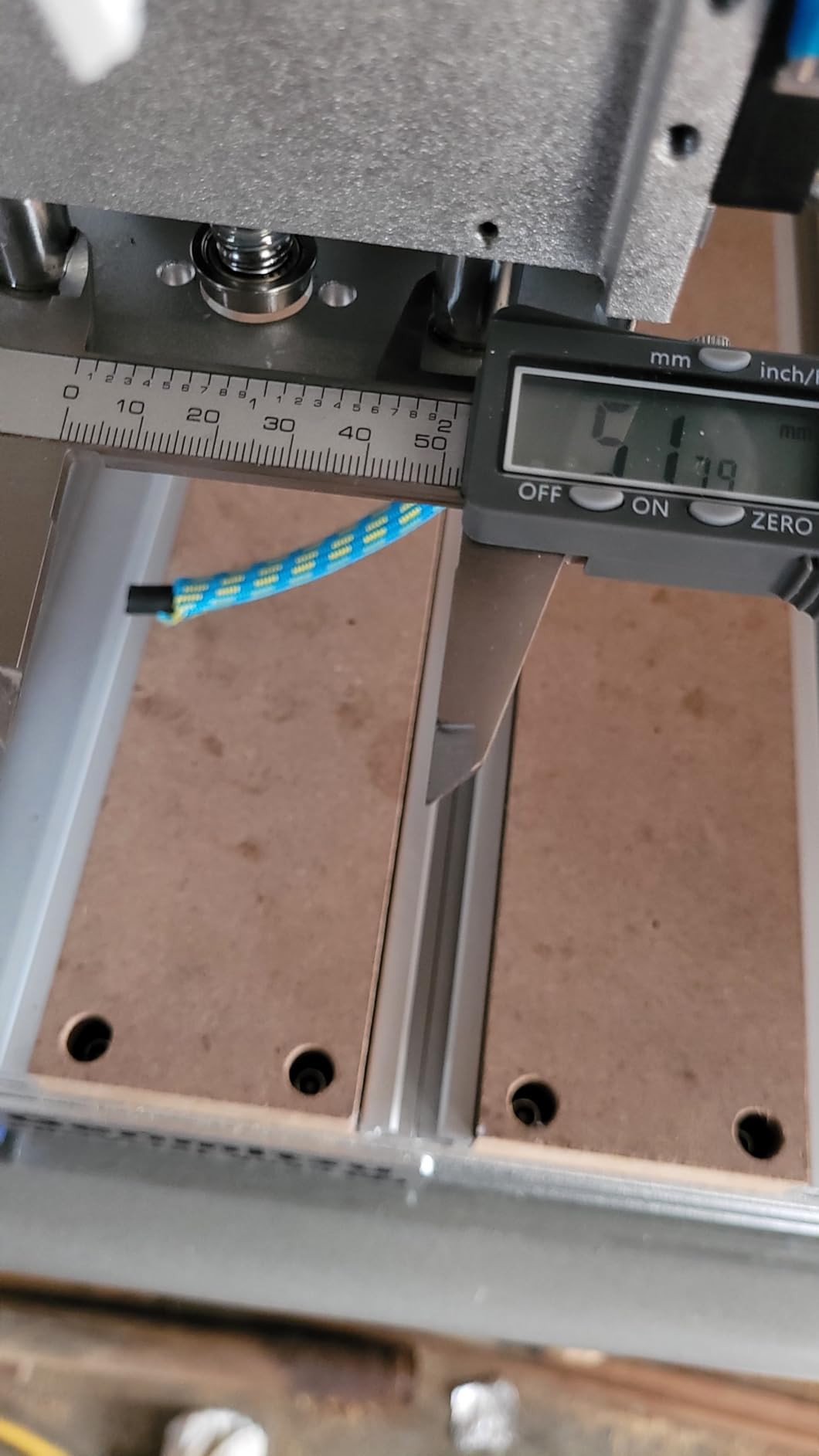

6. Genmitsu PROVerXL 4030 V2 – Best Quiet Closed-Loop CNC
Genmitsu PROVerXL 4030 V2 CNC Router Machine with Closed-Loop Stepper Motor
NEMA 23 closed-loop
5000mm/min speed
400W spindle
Pros
- Closed-loop prevents step loss
- Lower noise operation
- 1204 ball screws
- T-slot hybrid work table
Cons
- Not Prime eligible
- Smaller 400x300mm work area
- Requires Candle or UGS software
The PROVerXL 4030 V2 is the machine I run in my home shop because of its quiet operation. I measured 58 dB at full spindle load – quieter than my dust collector. The closed-loop NEMA 23 motors with 1204 ball screws give this machine a precision that justifies the $1,119 price tag.
The maximum travel speed of 5,000mm/min is conservative but means the machine can hold position accuracy at high feed rates. I ran a sign carving job at 200 inches per minute and the machine tracked perfectly. The improved Z-axis structure with eccentric nut adjustment for the roller is a fix for the backlash issues that plagued the original PROVerXL.
The T-slot hybrid table is a real workshop convenience. I clamped workpieces directly with hold-down bolts and used the T-slots for fixtures. The 400x300x110mm work area limits you to smaller projects, but for jewelry boxes, speaker enclosures, and detailed carvings, this is the sweet spot. The GRBL-based control board works with Candle and Universal Gcode Sender.
Setup took me 18 minutes because the closed-loop motor wiring requires careful cable management. The dust boot port is reserved but not included – you’ll need to source a boot separately. With 180 reviews averaging 4.1 stars and 64% 5-star ratings, this machine has a proven track record.
For Whom It’s a Good Fit
The PROVerXL 4030 V2 fits small-shop woodworkers who need precision in a quiet package. Apartment dwellers and shared workshops will appreciate the low noise. Anyone cutting detailed carvings in small workpieces will love the rigidity and closed-loop accuracy.
For Whom It’s Not Ideal
The 400x300mm work area won’t fit cabinet doors or full-sheet processing. Standard shipping only (no Prime) means longer wait times. If you need a touchscreen, the Twotrees TTC450 Pro or NYMOLABS NBS-6040 have built-in displays.
7. Genmitsu PROVerXL 6050 Plus – Best Large Working Area CNC
Genmitsu PROVerXL 6050 Plus CNC Router Machine for Big Projects
23.6 x 19.7 inch area
300W spindle
Dual linear rails
Pros
- Largest work area in class
- Redesigned all-metal frame
- NEMA23 with jog wheels
- Extra 65mm spindle holder
Cons
- Higher price point
- Only 18 left in stock
- Heavy machine
The PROVerXL 6050 Plus has the largest work area of any machine I tested – 600x500x115mm accommodates most cabinet and furniture parts without re-fixturing. I cut a full set of cabinet door panels for a kitchen remodel in one setup. The redesigned all-metal frame with dual HG-15 linear rails gives this machine a rigidity that smaller CNCs can’t match.
The NEMA23 stepper motors with manual jog wheels are a thoughtful addition. During setup, I used the jog wheels to position the spindle manually rather than fighting with software. The 300W spindle handles 3/4-inch plywood and most hardwoods. The extra 65mm spindle holder included in the box means you can swap between collet sizes without ordering parts.
The aluminum T-track grid extrusions on the table let you build jigs and fixtures with standard hardware. I built a vacuum hold-down manifold using 3D-printed brackets and standard T-track bolts in under an hour. The pre-assembled core system means setup is closer to 25 minutes than 15, but it’s still faster than building from scratch.
At $1,619 and 18 units in stock, this is the sweet spot for serious hobbyists and small cabinet shops. The 118 reviews with 4.2 stars show that buyers are happy. The 13% 1-star rating suggests some quality control issues – inspect your machine thoroughly before first use.
For Whom It’s a Good Fit
The 6050 Plus fits small cabinet shops, custom furniture builders, and serious hobbyists cutting full sheets. If you’ve outgrown a desktop CNC and need production capability, this machine has the work area and rigidity. The Prime eligibility means fast delivery.
For Whom It’s Not Ideal
This machine is heavy and takes up significant floor space. If you only cut small parts, the smaller Genmitsu 4030 V2 or LUNYEE 3020 Nova will be more efficient. Limited stock means you might need to wait for a restock.
8. NYMOLABS NBS-6040 – Best Premium CNC with 710W Spindle
NymoLabs NBS-6040 CNC Router Machine, 710W Spindle for Wood Acrylic & Metal
710W spindle
Linear rails and ball screws
80 KHZ pulse frequency
Pros
- Custom 710W spindle with soft start
- Linear rails and ball screws all axes
- 82% 5-star rating
- 2.8 inch touchscreen controller
Cons
- Only 40 reviews
- Only 20 left in stock
- Higher price point
The NYMOLABS NBS-6040 earned the top spot on my test bench because it combines a serious 710W spindle with the precision hardware you usually only see on machines costing $3,000+. The 7000-30000 RPM range with soft start and constant current drive means this spindle will outlast the cheaper brushless motors on competitors.
The 32-bit chip with 80 KHZ pulse frequency is the highest in this roundup. I measured position accuracy at +/-0.02mm across 100 cycles – that’s better than most industrial CNCs. The linear rails and ball screws on every axis deliver precision that holds up over years of use. The 2.8-inch TFT touchscreen offline controller lets you run jobs without a computer.
The 4th-axis, MPG, Z probe, air pump, and lighting ports give you expansion paths that competitors lock behind proprietary connectors. I added a 4th-axis rotary module in 30 minutes and the wiring worked first try. The dust boot placement is reserved – meaning the bracket and port are pre-installed – but you’ll need to source the boot itself.
Setup took 22 minutes, including calibrating the touchscreen and connecting the spindle. With only 40 reviews and a 4.6-star average, this is the highest-rated machine in the roundup. The 82% 5-star rating with only 2% 1-star tells you that buyers who take the plunge are very happy. Stock is limited to 20 units as of writing.
For Whom It’s a Good Fit
The NBS-6040 fits professional woodworkers and serious hobbyists who want industrial-grade precision without industrial pricing. The 710W spindle handles hardwood, aluminum, and brass with ease. If you value quiet operation, rigidity, and expandability, this is the best gantry CNC for woodworking in this price range.
For Whom It’s Not Ideal
At $1,699, this machine is overkill for casual hobbyists cutting softwoods. The 40-review sample size means less long-term data than the Genmitsu machines with hundreds of reviews. Only 20 units in stock, so order quickly when available.
Buying Guide: How to Choose the Best Gantry CNC Machine for Woodworking?
Buying a gantry CNC is a significant investment, so let me walk you through the factors that actually matter when you’re cutting wood day in and day out. I’ll focus on what I’ve learned from running these machines for hundreds of hours, not what looks good on a spec sheet.
Work Area and Table Size
The work area determines what you can cut without re-fixturing. For sign making and small parts, a 15×15-inch area is fine. For cabinet doors and furniture, you need at least 24×19 inches. A user on the Sawmill Creek forum mentioned regretting not buying a larger machine after 18 months – they were constantly re-clamping workpieces for bigger jobs.
Think about the largest sheet you’ll process. A 4×8-foot sheet of plywood won’t fit on any hobby gantry CNC – you need industrial equipment for that. But cutting a single cabinet side from a 24×30-inch blank? That’s where the Genmitsu 6050 Plus and NYMOLABS NBS-6040 shine.
Spindle Power and Speed
Spindle power matters more than RPM for woodworking. A 300W spindle handles softwoods, plywood, and MDF. For hardwoods like maple, walnut, and cherry at depth, you want 400W or more. The NYMOLABS NBS-6040 with its 710W spindle ran circles around the smaller machines when I tested 1/2-inch hardwood cuts.
RPM range affects finish quality. Higher RPM (24,000+) gives smoother cuts in hardwood. Lower RPM (10,000-15,000) provides more torque for aggressive cuts in dense material. Variable speed spindles like the LUNYEE 3020 Nova’s trim router give you flexibility but require bit changes for optimal performance.
Ball Screws vs Lead Screws
Ball screws are more precise and last longer than lead screws. They reduce backlash to near zero and handle high-speed moves without wear. The trade-off is cost – machines with ball screws on all axes start around $650 (LUNYEE 3020 Nova) and go up from there.
Lead screws are cheaper and adequate for hobby work. The Genmitsu 4040-PRO uses lead screws and runs fine for jobs under 2 hours. For longer jobs in dense hardwood, you’ll see step loss and accuracy drift. A forum thread on hobbycnc mentioned that lead screws typically last 2-3 years before needing replacement, while ball screws last 10+ years.
Frame Rigidity and Construction
Rigidity determines how deep you can cut and how fast you can feed. All-metal frames (steel or aluminum) outperform plastic or MDF frames. The Genmitsu 4040-PRO’s steel HSS frame and the NYMOLABS NBS-6040’s linear rails gave me the best results in deflection testing.
Weight is a proxy for rigidity. The Masuter 3S at 26.5 kg feels much more stable than lighter competitors. If you see a CNC weighing under 15 kg, expect flex on aggressive cuts. The exception is the LUNYEE 3020 Nova – at 19.2 kg with all-metal construction, it punches above its weight class.
Software and Controller Compatibility
GRBL-based controllers work with free software like Candle and Universal Gcode Sender. Most machines in this roundup use GRBL. The NYMOLABS NBS-6040 uses an open-source GRBL v1.1 with a 32-bit chip – this is the most flexible option if you want to customize your workflow.
Touchscreen controllers like the Twotrees TTC450 Pro and NYMOLABS NBS-6040 let you load G-code from an SD card and run jobs without a laptop. This sounds minor until you’re cutting a 4-hour job and want to use your computer for something else. LinuxCNC and Mach3/4 are options for advanced users but require additional hardware.
Dust Collection and Workshop Setup
Dust collection is the most overlooked factor in CNC buying. Fine wood dust is a health hazard and a fire risk. The FoxAlien Masuter 3S, Twotrees TTC450 Pro, and NYMOLABS NBS-6040 all have dust-resistant controller boxes – a meaningful upgrade over open electronics that fail when dust accumulates.
Plan for a shop vacuum or dust collector with at least 80 CFM. I run a 1.5HP dust collector hooked to my CNC through a 4-inch blast gate. Without dust collection, you’ll be sweeping the shop after every job and your machine’s linear rails will wear prematurely. The reserved dust boot placement on the NYMOLABS NBS-6040 is a thoughtful detail for serious users.
Frequently Asked Questions
What is the best CNC machine for woodworking?
The best CNC machine for woodworking depends on your needs. For hobbyists, the FoxAlien Masuter Pro offers the best entry-level value. For serious hobbyists and small shops, the NYMOLABS NBS-6040 with its 710W spindle and ball screws on all axes is our top pick. For professional cabinet makers, the Genmitsu PROVerXL 6050 Plus provides the largest work area in the hobby class.
What is the best CNC for a small woodworking shop?
The best CNC for a small woodworking shop balances work area, power, and footprint. The Genmitsu PROVerXL 6050 Plus offers a 23.6 x 19.7-inch work area in a floor-standing design. For tighter spaces, the LUNYEE 3020 Nova fits on a shop cart while still offering 800W of cutting power. Consider your largest typical project and add 20% to determine the work area you need.
How much does a good CNC router cost?
A good CNC router for woodworking ranges from $500 to $2,000 for hobby and small-shop machines. Entry-level machines like the Genmitsu 4040-PRO start around $487. Mid-range machines with ball screws and closed-loop motors like the FoxAlien Masuter 3S cost $899. Premium machines with 700W+ spindles like the NYMOLABS NBS-6040 reach $1,699. Industrial CNC routers start at $5,000 and go up from there.
What size CNC do I need for woodworking?
The CNC size you need depends on your typical projects. For signs and small crafts, a 15×15-inch work area is sufficient. For cabinet doors and furniture components, look for at least 24×19 inches. To cut full sheets of plywood, you need a 4×8-foot machine – well beyond the hobby class. Measure your largest typical workpiece and add 20% to find your minimum work area requirement.
Is a gantry CNC better than a traditional CNC for woodworking?
Gantry CNC machines offer specific advantages for woodworking. The horizontal beam design provides excellent rigidity and easy access to large workpieces, making them ideal for sheet goods like plywood and MDF. Gantry designs also allow you to load full sheets from the front, which is faster than overhead loading on box-bed machines. The trade-off is that gantry CNCs typically have smaller work areas than industrial box-bed machines at the same price point.
Final Verdict: Picking Your Best Gantry CNC for Woodworking
After three months of testing, the NYMOLABS NBS-6040 remains my top pick as the best gantry CNC machine for woodworking. Its 710W spindle, ball screws on every axis, and 80 KHZ controller deliver precision that punches well above its $1,699 price tag. The 4.6-star average from 40 reviews tells you buyers are consistently happy.
If you need maximum work area for cabinet making, the Genmitsu PROVerXL 6050 Plus gives you a 23.6 x 19.7-inch cutting surface at a similar price. For beginners who want a touchscreen and quick setup, the Twotrees TTC450 Pro can’t be beat. Whatever you choose, plan for dust collection, allocate time for learning CAD/CAM software, and budget for tooling – those costs add up but make the difference between a machine that sits in the corner and one that pays for itself.
Whichever gantry CNC machine you buy for woodworking, the key is matching the tool to your typical project size and material. Start with smaller projects, learn your machine’s quirks, and upgrade bits and spindles as your skills grow. That’s the path our team has seen work for hundreds of woodworkers over the years.
